ARM-based SBC
2NOR03
Overview

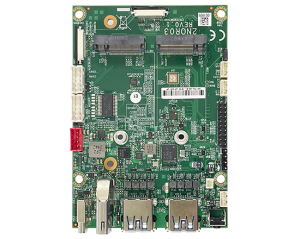

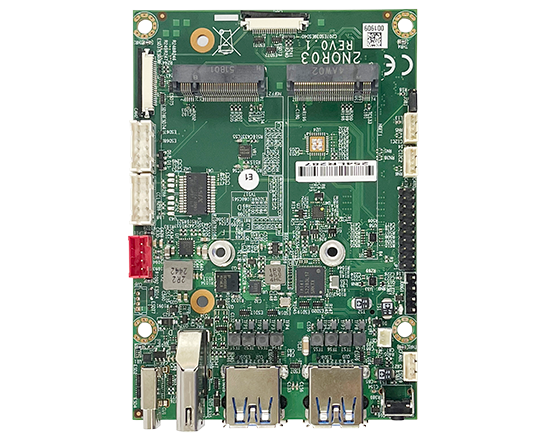

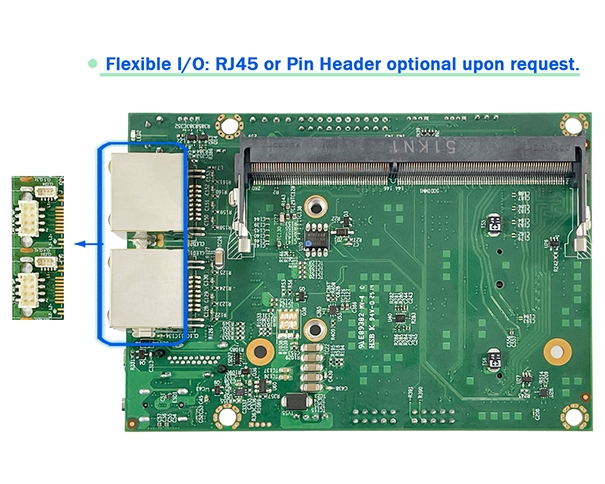

The LEX SYSTEM ultra-compact 2NOR03 carrier board leverages the power of NVIDIA Jetson Orin NX / Nano (Super) modules to deliver exceptional AI performance, ranging from 40 to 100 TOPS at the edge. Designed specifically for compute-intensive AI video applications, the 2NOR03 features a rich set of I/O interfaces, including 1 x GbE, 1 x 2.5GbE, HDMI®, 2 x USB 3.1, 1 x USB Type-C (USB 3.1/2.0 OTG), 1 x RS232, 2 x M.2 slots, and 2 x MIPI CSI connectors. It also supports a wide-range DC-IN power input, making it ideal for implementing AI video solutions and meeting the diverse requirements of Edge AI applications.
Features
CPU Board :
- NVIDIA Jetson Nano (Super): 4 / 8GB LPDDR5, 40 TOPs
NVIDIA Jetson NX: 8 / 16GB LPDDR5, 70 / 100 TOPs - AI Accelerator: NVIDIA® Jetson Orin™ Nano / Orin™ NX

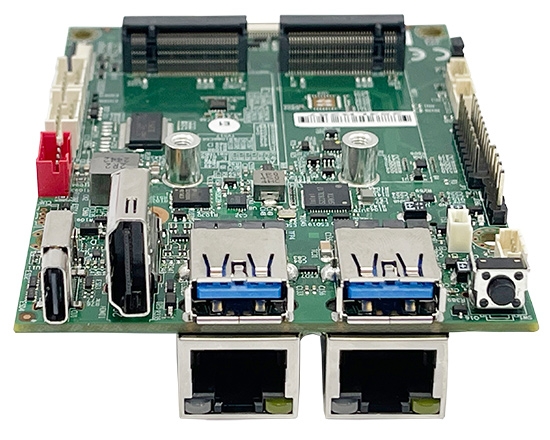

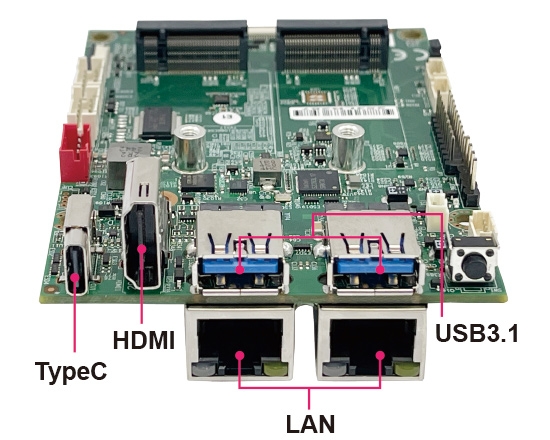

- 1 x HDMI ®, 1 x GbE, 1 x 2.5GbE
- 2 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG)
- 1 x RS232 (OEM Option RS422)

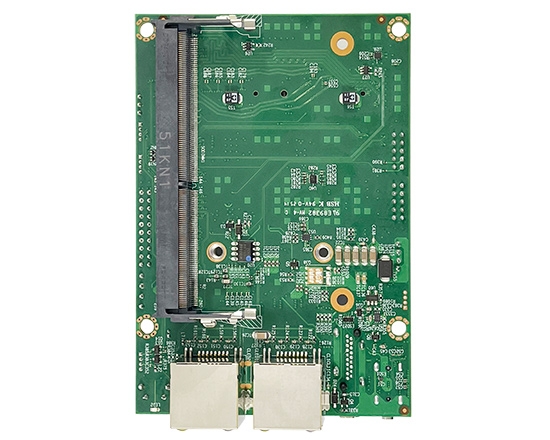

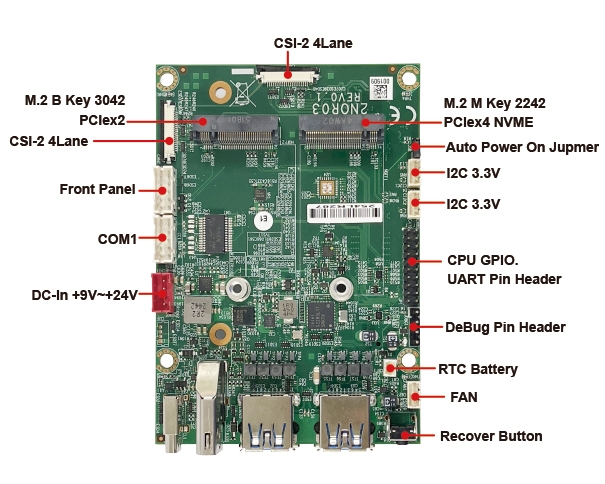

- 1 x M.2 M key, 1 x M.2 B key
- Internal wafer: 2 x MIPI CSI, URAT, 2 x I2C
| MODEL | 2NOR03 |
|---|---|
| CPU |
8-core Arm® Cortex®-A78AE 2.0 GHz |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| AI Accelerator |
NVIDIA Jetson Orin NX: 70 / 100 TOPs |
| System Memory | Jetson Orin NX: LPDDR5, 8/16 GB Jetson Orin Nano(Super): LPDDR5, 4/8 GB |
| Storage | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe |
| Display | 1 x HDMI® |
| LAN | 1 x GbE 1 x Intel 2.5GbE (I226-IT) |
| Expansion Interface | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 2) |
| USB | 2 x USB 3.1 (Type A, external) ; 1 x USB 3.1 / 2.0 (Type C, OTG) |
| Serial IO | 1 x RS232 (OEM Option RS422) |
| URAT, I2C, I2S | 1 x URAT ; 2 x I2C |
| Camera interface | 2 x MIPI CSI |
| Power Input | DC-IN +9V~24V |
| Dimension | 70 x 99.8 mm |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
Box PC: PALM |
| OS Support | Linux |
|

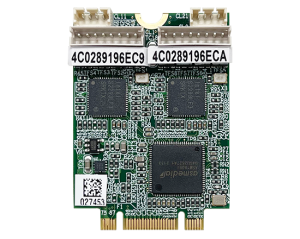

Model |
Function Category |
Description |
|---|---|---|
|
Networking / Communication |
PCIe to GbE LAN |
|
|
NF212B+CL002 |
Networking / Communication |
PCIe to Dual GbE LAN |
|
PoE Module |
1 port PSE up to 25.5W |
|
|
PoE Module |
2 port PSE up to 30.8W |
|
|
Networking / Communication |
PCIe to 2.5G LAN |
|
|
NF226B+CL002 |
Networking / Communication |
PCIe to Dual 2.5G LAN |
|
PoE Module |
1 port PSE up to 25.5W |
|
|
PoE Module |
2 port PSE up to 30.8W |
|
|
CN073-S3+ME225-S |
Capture Card |
HDMI video capture card High Speed Micro Coaxial Cable |
|
CN073-S+CU006-S |
Converter Board |
PCIe to 4 x USB 3.0 |
|
CN073-S+CL210A |
Networking / Communication |
PCIe to Quad GbE LAN |
|
CN073-S+CL226A |
Networking / Communication |
PCIe to Quad 2.5G LAN |
|
CN073-S+CN074 |
Converter Board |
PCIe to 2 x M.2 B-key slot |
|
Power Board |
Wide range DC IN with CPC function |
|
|
Power Board |
DC to DC Redundant Power Board |
|
|
Power Board |
Wide range DC IN witn Surge stopper function |
|
Part Number |
Sensor |
Resolution |
View Angle |
Chromaticity |
Shutter Type |
Interface |
|---|---|---|---|---|---|---|
|
onsemi AR0144 |
1MP |
33° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0144 |
1MP |
83° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
32° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
83° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0234 |
2MP |
128° |
Color |
Global |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
34° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0521 |
5MP |
140° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
34° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
34° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
85° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
140° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0522 |
5MP |
140° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
44° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
74° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
119° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0821 |
8MP |
156° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
42° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
42° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
72° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
72° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
108° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
108° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
150° |
Color |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR0822 |
8MP |
150° |
Mono |
Rolling |
MIPI CSI-2 |
|
|
onsemi AR1335 |
13MP |
85° |
Color |
Rolling |
MIPI CSI-2 |
